t6pgmnmcu.jpg (15003 bytes) The program determines when a load should be energized and when an input should be checked. The T6 controller executes the program in the same sequence as you wrote it... which is the same way your machine operates. This completely eliminates the complex synchronizing methods of other PLC's.

You'll always know what is happening when the machine is running, because the programmer shows you what the controller is doing in plain English!

The T6 is versatile enough to control a wide variety of machine applications. Just one T6 controller can replace hundreds of timers, counters and relays.
Programmer acts as a guide while the machine is running.

Not only is the T6 easy to use, it's expandable too.

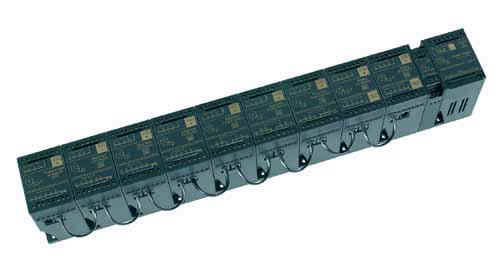

FULLRA~1 copy.jpg (30527 bytes) The T6 controller has 6 inputs and 4 outputs (10 I/O). Add I/O as your machine requirements grow. I/O sections are available in different types and configurations. Programming remains easy, regardless of how many I/O are added. I/O sections are easy to install- just snap them onto the DIN rail and plug in the cable.


t6rtp.jpg (13937 bytes) Mounted on the front of your machine, a remote timer panel allows easy adjustment of timers... even while the machine is running. Adjusting couldn't be easier-- just select one of the 8 timers by name, then adjust its time setting higher or lower. You set the range of adjustment for each timer and can even assign it a custom name. In addition to timers, it can also display up to 15 messages. Your program remains secure because it cannot be accessed from this panel. A remote counter panel is also available to display and adjust counters.

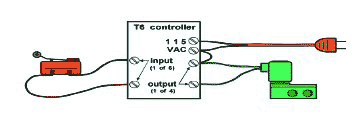

With optically isolated inputs and magnetic power line isolation, the T6 can operate reliably in harsh industrial environments. The low voltage "shock safe" inputs interface directly with electronic sensors such as hall-effect, proximity, optical, etc. The T6 can even be used without connecting anything to the inputs, such as to perform a timing sequence of the outputs.

   Direct-connect inputs are
"shock safe"


The outputs are connected to loads, such as a: valve (air/oil), motor, heating element, solenoid, etc. The T6 has 4 relay type outputs, each one is rated for 5 amps. Power is connected directly to the controller with no special conditioning required.
