Output Expansion Sections

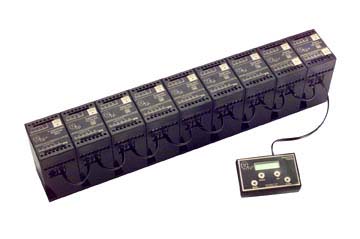

Photo of a T6 MCU with 8 I/O blocks & programmer

Part No.   0/8-20-115, 0/8-30-115, 0/8-40-115, 0/8-50-115, 0/8-60-115 and 6/4-70-115

Power Requirements

115VAC @ .02A, 50/60Hz w/1000v magnetic isolation

( I/O blocks are also available in 230vac. or 12-24 vdc. )

Outputs

8 relay contacts unprotected, with no leakage current

5Amps @ 230VAC ( resistive load ), 250 VA ( inductive load )

Response time: 10ms operate / 5ms release

Rated life: 5 million ( mech. ) / 200,000 @ 3A ( resistive load )

Output configuration

Outputs # x1 to x4, all "N.O" and share one common

Output # x5 is "N.O.", Output # x6 is "N.O." and "N.C.", Both share one common

Output # x7 is "N.O." and "N.C.", Output # x8 is "N.O.", Both share on common

Inputs

None.

Physical

Size      2.9" ( 75mm ) x 2.2" ( 55mm ) x 4.3" ( 110 mm )

Mounting      DIN rail or panel ( with two #6 screws )

Weight      11 oz. ( 312 grams )

Temp     0 - 140 F, 90% r. humidity ( no condensation )

Origin     Designed and assembled in the USA.
